Cast Steel Gate, Globe, & Check Valves

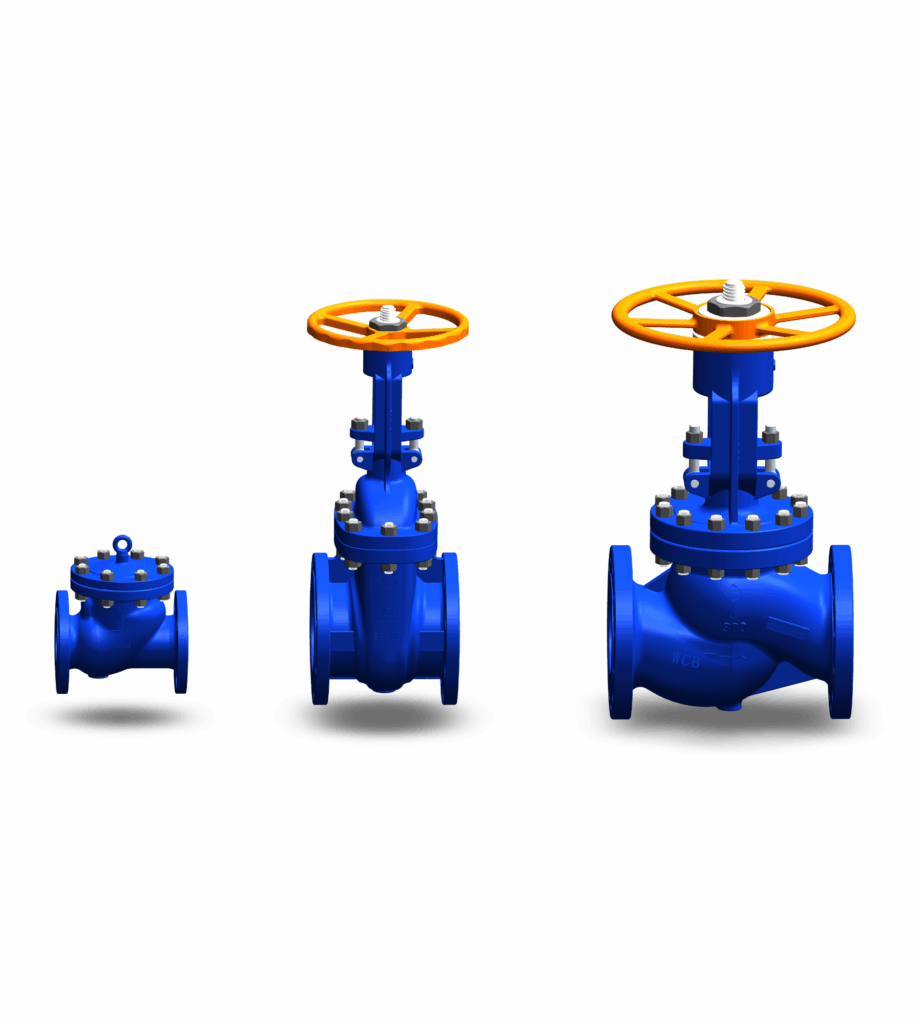

Our Cast Valves
SOCVALVES cast steel valves ensure safe and efficient fluid control, along with high reliability in all situations — even under the most extreme conditions. Their robust design, in compliance with the most demanding international standards, and the use of high-quality materials guarantee exceptional durability.
- Valve design according to API 600, API 623 and API 594
- Wide range of specialized alloys available
- Pressure Seal and automated options available
Cast Steel Gate Valve
Specifications
- Design Standard: API 600
- Size Range: 1/2” to 24”
- Pressure Range: 150#, 300#, 600#, 800#, 1500#, 2500#
- End Connections: Flanges RF & RTJ, Butt Weld*
- Inspection and Testing: API 598, ISO 5208, EN 12266-1, API 624 (Emissions Fugitives)
- Flanged End Dimensions: ASME B16.5
- Butt Weld End Dimensions: ASME B16.25
- Overall Design and Pressure-Temperature Ratings: ASME B16.34
- Materials : ASTM A216-WCB, ASTM A350-LCC, ASTM A217-WC6, ASTM A217-WC9, ASTM A351-CF3, ASTM A351-CF8, ASTM A351-CF3M, ASTM A351-CF8M, ASTM A182-F316/F316L, ASTM A995-4a, ASTM A995-5a, ASTM A995-6a, ASTM B148*
*Consult sales team for alternative configurations, connections, or materials.
Cast Steel Globe Valve
Specifications
- Design Standard: API 623
- Size Range: 1/2” to 24”
- Pressure Range: 150#, 300#, 600#, 800#, 1500#, 2500#
- End Connections: Flanges RF & RTJ, Butt Weld*
- Inspection and Testing: API 598, ISO 5208, EN 12266-1, API 624 (Emissions Fugitives)
- Flanged End Dimensions: ASME B16.5
- Butt Weld End Dimensions: ASME B16.25
- Overall Design and Pressure-Temperature Ratings: ASME B16.34
- Materials : ASTM A216-WCB, ASTM A350-LCC, ASTM A217-WC6, ASTM A217-WC9, ASTM A351-CF3, ASTM A351-CF8, ASTM A351-CF3M, ASTM A351-CF8M, ASTM A182-F316/F316L, ASTM A995-4a, ASTM A995-5a, ASTM A995-6a, ASTM B148*
*Consult sales team for alternative configurations, connections, or materials.
Cast Steel Check Valve
Specifications
- Design Standard: API 594
- Size Range: 1/2” to 24”
- Pressure Range: 150#, 300#, 600#, 800#, 1500#, 2500#
- End Connections: Flanges RF & RTJ, Butt Weld*
- Inspection and Testing: API 598, ISO 5208, EN 12266-1, API 624 (Emissions Fugitives)
- Flanged End Dimensions: ASME B16.5
- Butt Weld End Dimensions: ASME B16.25
- Overall Design and Pressure-Temperature Ratings: ASME B16.34
- Materials : ASTM A216-WCB, ASTM A350-LCC, ASTM A217-WC6, ASTM A217-WC9, ASTM A351-CF3, ASTM A351-CF8, ASTM A351-CF3M, ASTM A351-CF8M, ASTM A182-F316/F316L, ASTM A995-4a, ASTM A995-5a, ASTM A995-6a, ASTM B148*
*Consult sales team for alternative configurations, connections, or materials.
Cast Dual Plate Check Valve
Specifications
- Design Standard: API 594
- Size Range: 1/2” to 24”
- Pressure Range: 150#, 300#, 600#, 800#, 1500#, 2500#
- End Connections: Flanges RF & RTJ, Butt Weld*
- Inspection and Testing: API 598, ISO 5208, EN 12266-1, API 624 (Emissions Fugitives)
- Flanged End Dimensions: ASME B16.5
- Butt Weld End Dimensions: ASME B16.25
- Overall Design and Pressure-Temperature Ratings: ASME B16.34
- Materials : ASTM A216-WCB, ASTM A350-LCC, ASTM A217-WC6, ASTM A217-WC9, ASTM A351-CF3, ASTM A351-CF8, ASTM A351-CF3M, ASTM A351-CF8M, ASTM A182-F316/F316L, ASTM A995-4a, ASTM A995-5a, ASTM A995-6a, ASTM B148*
*Consult sales team for alternative configurations, connections, or materials.
