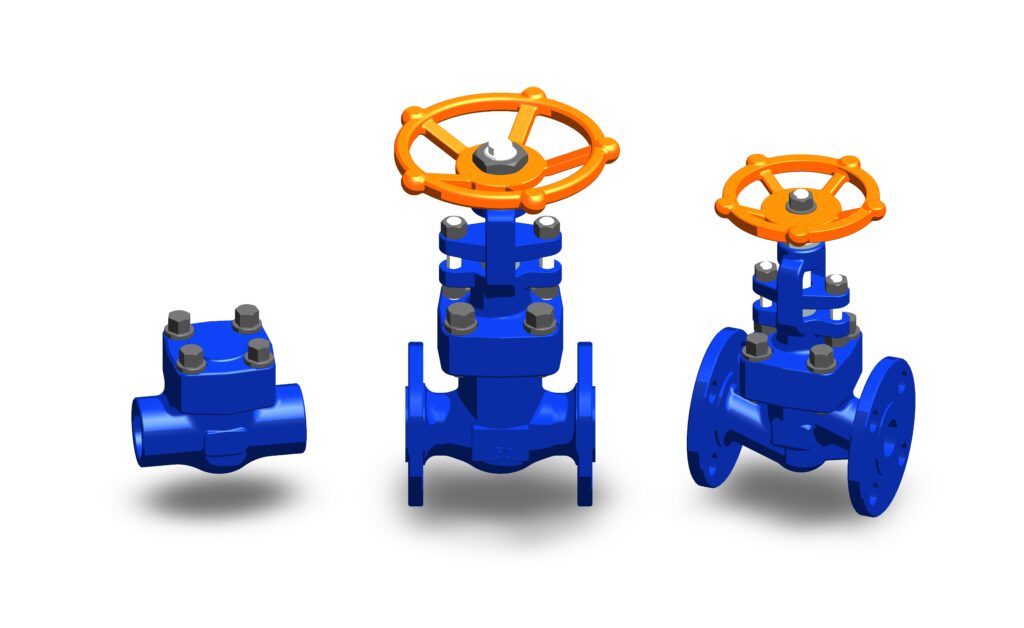

Forged Steel Gate, Globe, & Check Valves
Nos Robinet-Vanne en Acier Forgé
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
- Full range of designs including heavy wall (API 600, API 623, API 594) and light wall (API 603, ASME B16.34) patterns.
- A Plethora of Specialty Alloys to Choose From
- Cryogenic, Pressure Seal & Automated Options Available

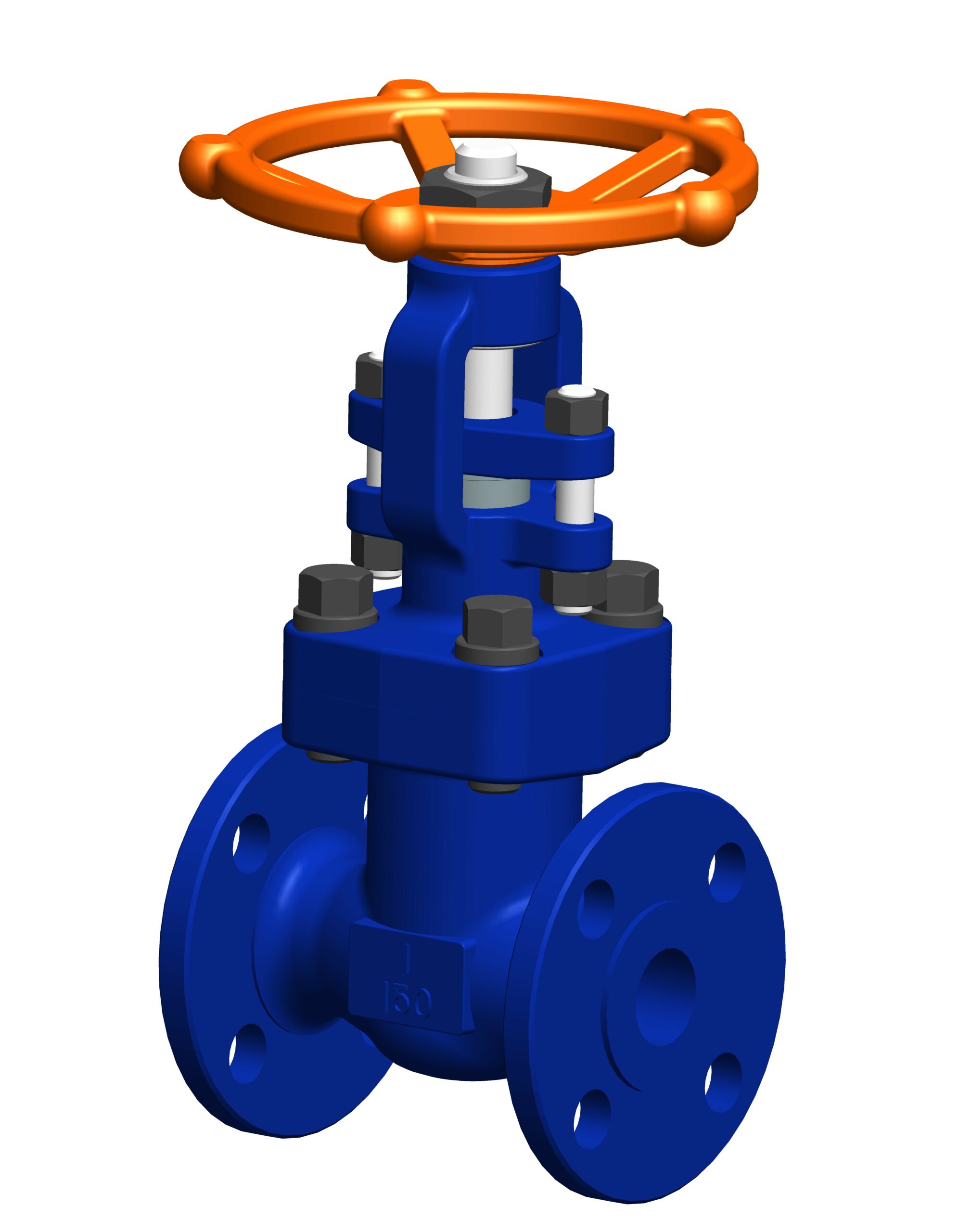

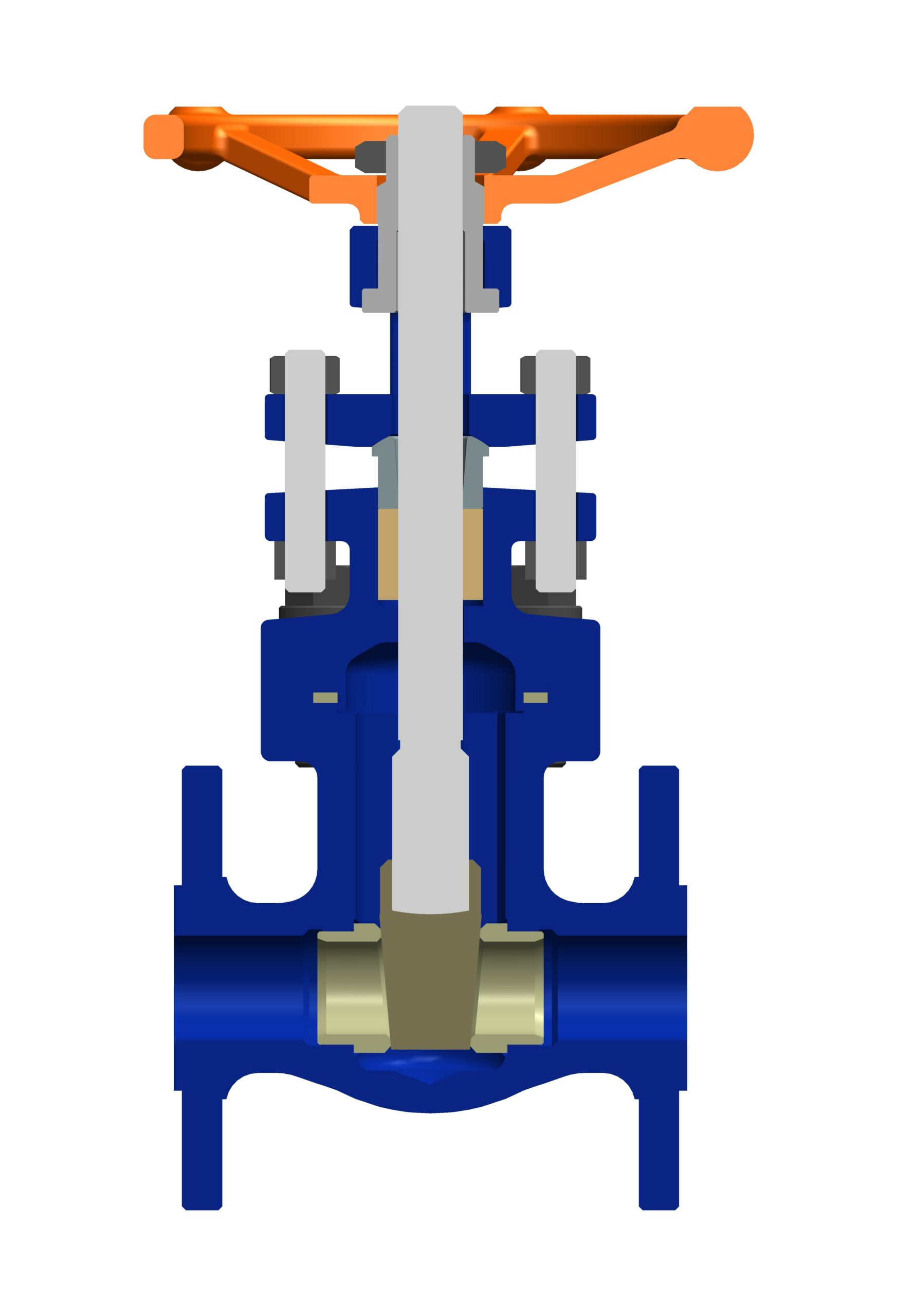

Forged Steel Gate Valve
Specifications
- Design Standard: API 600 or API 603 Size Range: 2” to 56” *
- Pressure Range: Class 150 thru 2500 *
- End Connections: Flanged RF & RTJ, Butt Weld *
- Inspection and Testing: API 598, Leakage Test, API 624 Fugitive Emissions Test
- Flanged End Dimensions: ASME B16.5 (≤24”), ASME B16.47 Series A or B (>24”) Butt Weld
- End Dimensions: ASME B16.25
- Face to Face Dimensions: ASME B16.10
- Pressure-Temperature Ratings: ASME B16.34

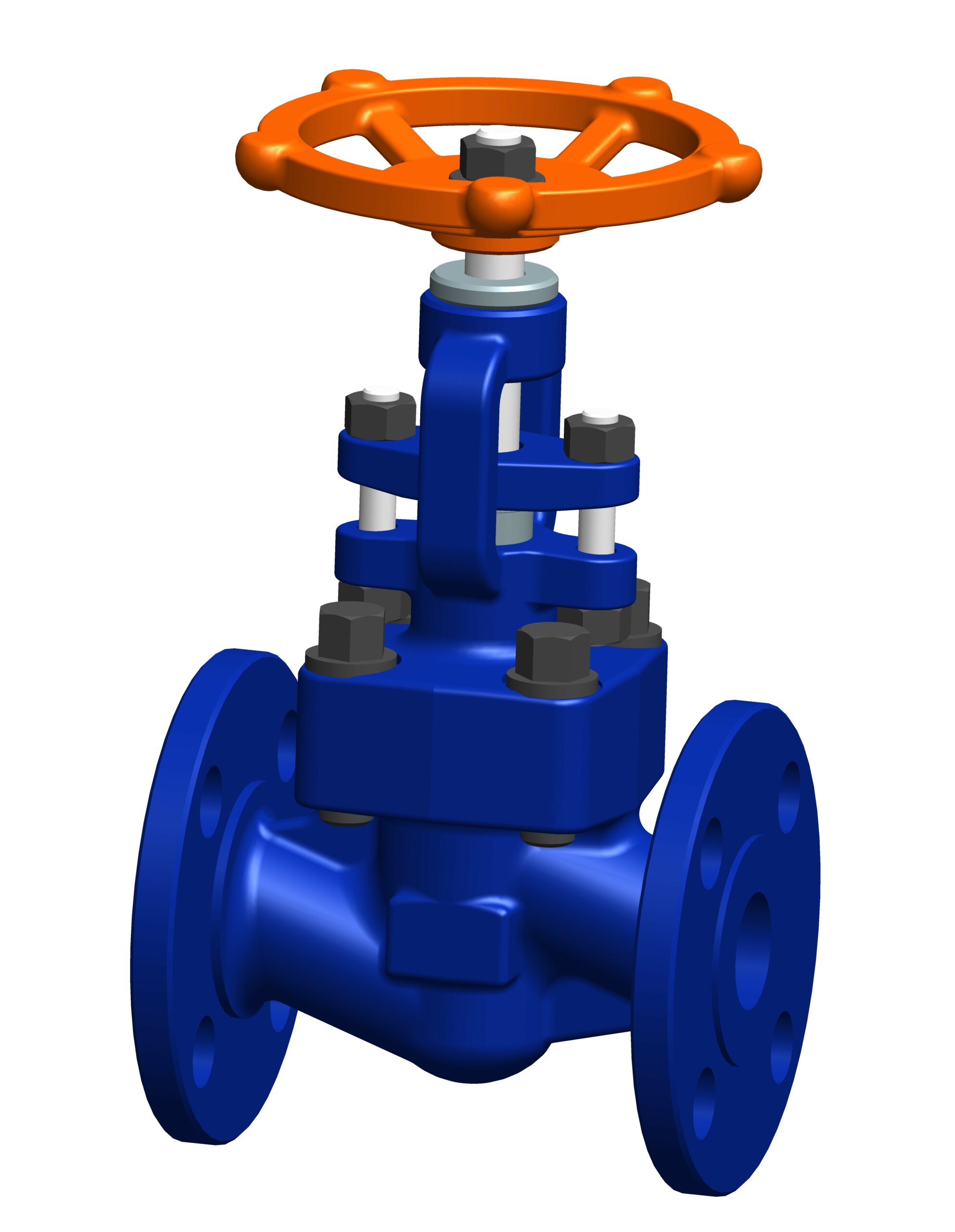

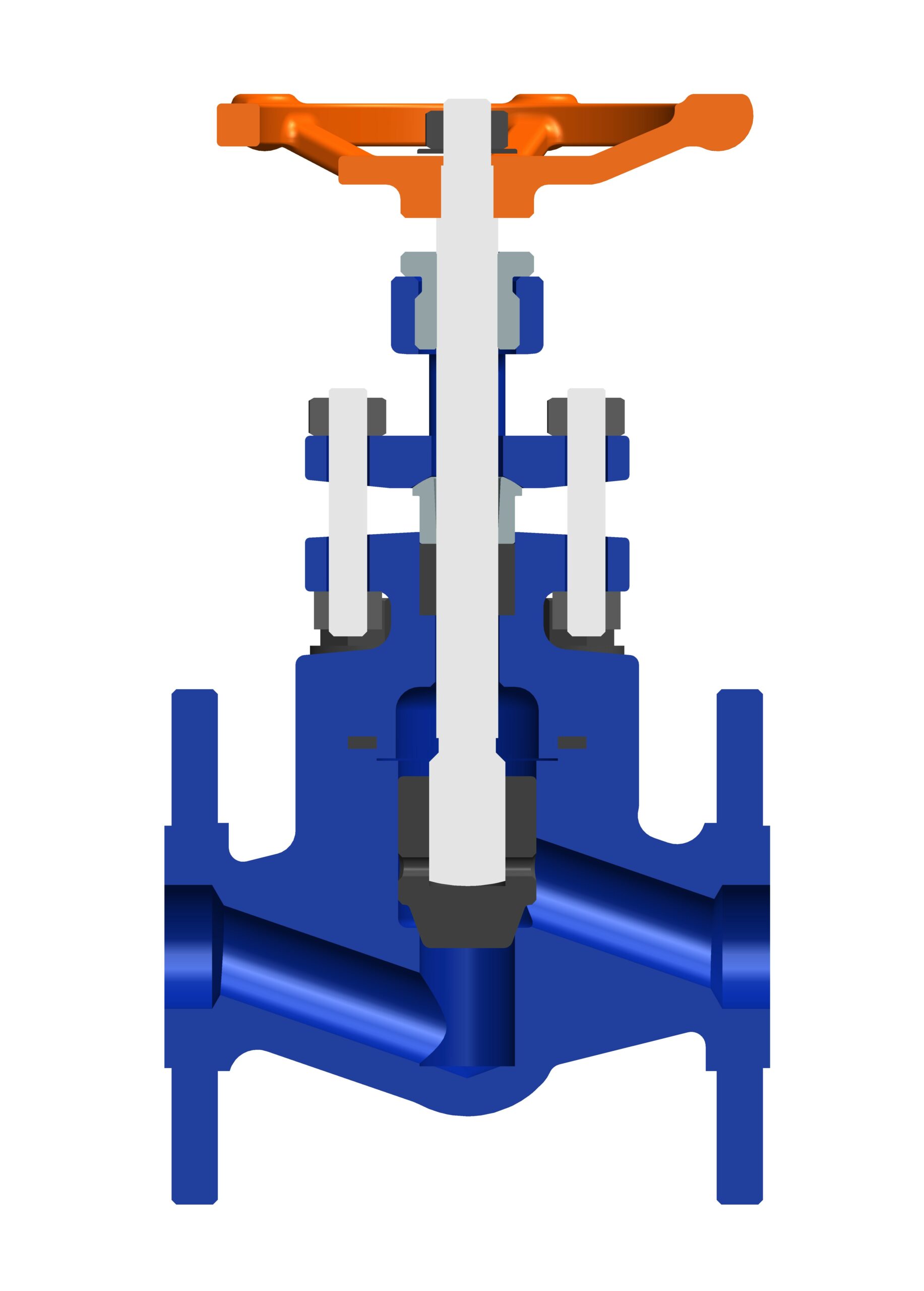

Forged Steel Globe Valve
Specifications
- Design Standard: API 600 or API 603 Size Range: 2” to 56” *
- Pressure Range: Class 150 thru 2500 *
- End Connections: Flanged RF & RTJ, Butt Weld *
- Inspection and Testing: API 598, Leakage Test, API 624 Fugitive Emissions Test
- Flanged End Dimensions: ASME B16.5 (≤24”), ASME B16.47 Series A or B (>24”) Butt Weld
- End Dimensions: ASME B16.25
- Face to Face Dimensions: ASME B16.10
- Pressure-Temperature Ratings: ASME B16.34

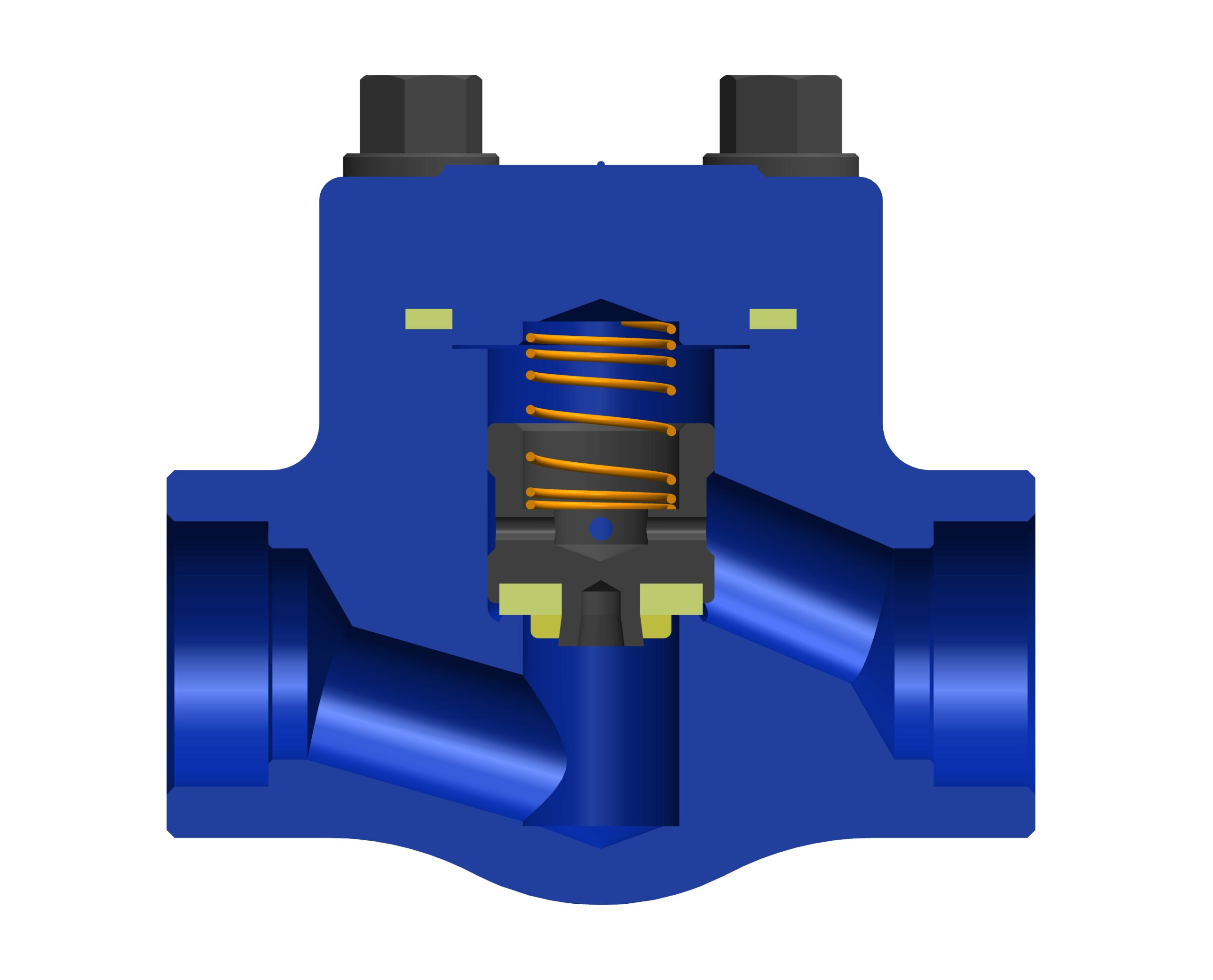

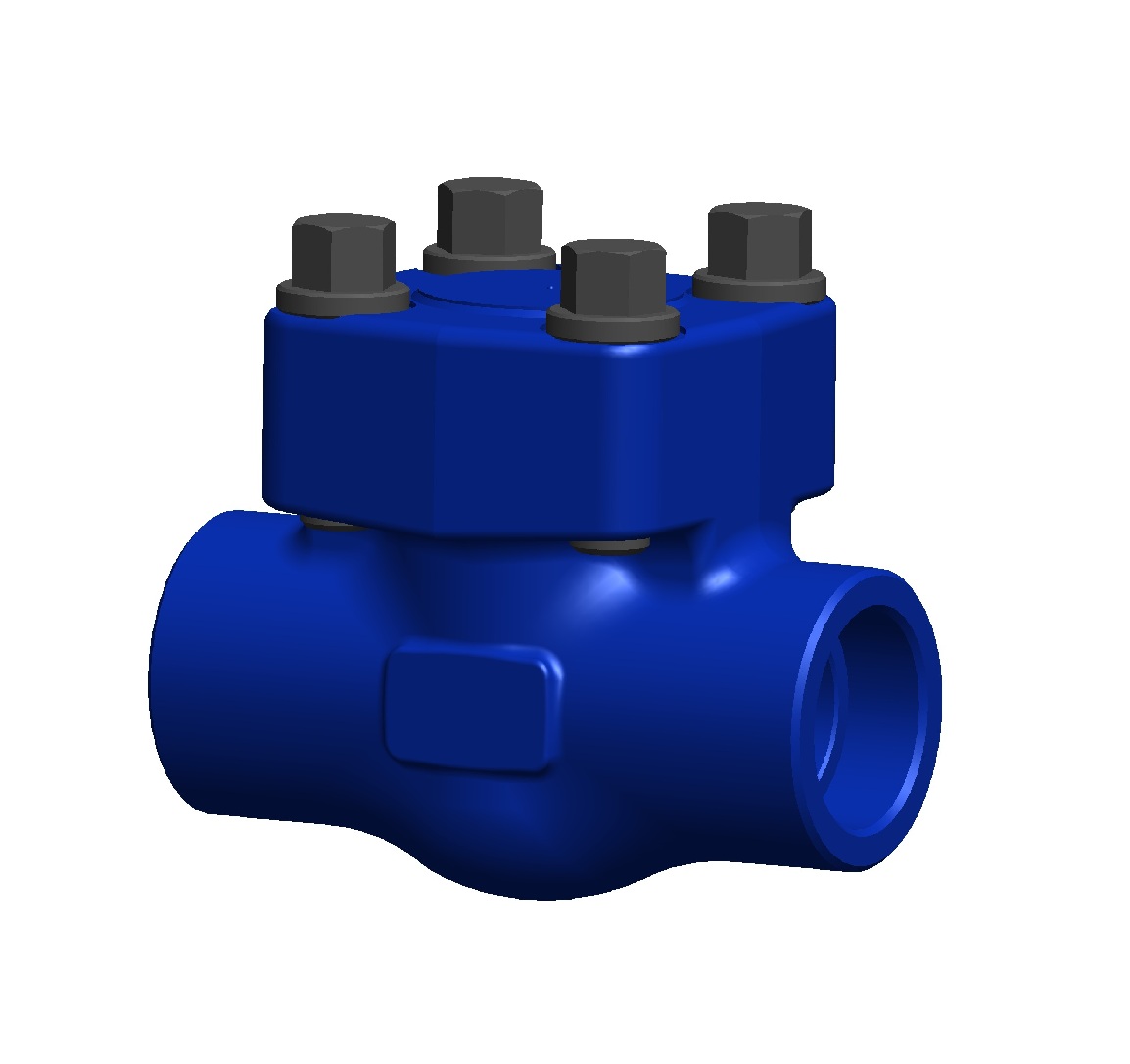

Forged Steel Check Valve
Specifications
- Design Standard: API 600 or API 603 Size Range: 2” to 56” *
- Pressure Range: Class 150 thru 2500 *
- End Connections: Flanged RF & RTJ, Butt Weld *
- Inspection and Testing: API 598, Leakage Test, API 624 Fugitive Emissions Test
- Flanged End Dimensions: ASME B16.5 (≤24”), ASME B16.47 Series A or B (>24”) Butt Weld
- End Dimensions: ASME B16.25
- Face to Face Dimensions: ASME B16.10
- Pressure-Temperature Ratings: ASME B16.34
